Standard Series Pipe Guides
| Standard Series Pipe Guides | |||||||
|---|---|---|---|---|---|---|---|
| Pipe size | Insulation Thickness Allowed For | ||||||
| 1" | 1-1/2" | 2" | 2-1/2" | 3" | 3-1/2" | 4" | |
| 1/2" | 004-104-4 | 004-104-4 | 004-205-4 | 004-208-4 | 004-308-4 | 004-308-4 | 004-410-4 |
| 3/4" | 006-104-4 | 006-605-4 | 006-206-4 | 006-308-4 | 006-308-4 | 006-410-4 | 006-410-4 |
| 1” | 010-104-4 | 010-605-4 | 010-206-4 | 010-308-4 | 010-308-4 | 010-410-4 | 010-410-4 |
| 1-1/4” | 012-104-4 | 012-605-4 | 012-206-4 | 012-308-4 | 012-308-4 | 012-410-4 | 012-410-4 |
| 1-1/2” | 014-105-4 | 014-105-4 | 014-206-4 | 014-308-4 | 014-308-4 | 014-410-4 | 014-410-4 |
| 2” | 020-105-4 | 020-606-4 | 020-208-4 | 020-208-4 | 020-310-4 | 020-310-4 | 020-412-4 |
| 2-1/2” | 024-106-4 | 024-106-4 | 024-208-4 | 024-208-4 | 024-310-4 | 024-310-4 | 024-412-4 |
| 3” | 030-106-4 | 030-208-4 | 030-208-4 | 030-310-4 | 030-310-4 | 030-412-4 | 030-412-4 |
| 4” | 040-108-4 | 040-108-4 | 040-210-4 | 040-210-4 | 040-312-4 | 040-312-4 | 040-414-6 |
| 5” | 050-110-4 | 050-110-4 | 050-110-4 | 050-312-4 | 050-312-4 | 050-314-6 | 050-416-6 |
| 6” | 060-110-4 | 060-110-4 | 060-212-4 | 060-212-4 | 060-314-6 | 060-416-6 | 060-416-6 |
| 8” | 080-112-4 | 080-112-4 | 080-214-6 | 080-316-6 | 080-316-6 | 080-418-6 | 080-418-6 |
| 10” | 100-216-6 | 100-216-6 | 100-216-6 | 100-318-6 | 100-318-6 | 100-420-6 | 100-420-6 |
| 12” | 120-218-6 | 120-218-6 | 120-218-6 | 120-320-6 | 120-320-6 | 120-422-8 | 120-422-8 |
| 14” | 140-220-6 | 140-220-6 | 140-220-6 | 140-220-6 | 140-322-8 | 140-322-8 | 140-424-8 |
| 16” | 160-222-8 | 160-222-8 | 160-222-8 | 160-222-8 | 160-324-8 | 160-324-8 | 160-426-8 |
| 18” | 180-224-8 | 180-224-8 | 180-224-8 | 180-224-8 | 180-326-8 | 180-326-8 | 180-428-8 |
| 20” | 200-226-8 | 200-226-8 | 200-226-8 | 200-226-8 | 200-330-8 | 200-330-8 | 200-330-8 |
| 24” | 240-230-8 | 240-230-8 | 240-230-8 | 240-230-8 | - | - | - |
Pipe Guides

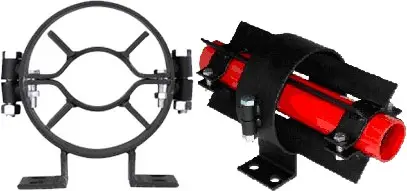

By restricting lateral pipe movement while allowing movement along the pipe’s axis, EFP guides ensure positive alignment.
Used in conjunction with pipe loops, bellows joints and slip joints, EFP guides protect the integrity of the pipe for proper operation.
