Beveled Weld End Loops

Downloadable PDF: Beveled Weld End Loops

Home » Beveled Loops

Hose:

Type 321 S/S; Braid ; Type 304 S/S

Elbows:

Carbon Steel, Sch 40

Ends:

Carbon Steel Sch 40, Weld End

Beveled Weld End Loops
Size (In.)	Overall Length OAL (In.)	Live Length LL (In.)	H (In.)	Approx. Spring Force* (Lbs.)	Pressure Ratings (PSI)		Allowable Motions Z, Y or Z
Size (In.)	Overall Length OAL (In.)	Live Length LL (In.)	H (In.)	Approx. Spring Force* (Lbs.)	W.P.	Max. Test	Allowable Motions Z, Y or Z
2	31-1/2	14	14-1/2	82	516	774	2"
2-1/2	34-3/4	14-1/2	16	86	387	581
3	39-1/2	16-1/2	18	93	316	474
4	45-1/2	18	20-1/2	127	232	348
5	52-1/2	20	23-1/2	214	191	286
6	58-3/4	21-1/2	26	228	165	247
8	71	24	30-1/2	312	234	350
10	83-1/2	27	36	345	230	344
12	94	28-1/2	40	399	161	241

Size (In.)	Overall Length OAL (In.)	Live Length LL (In.)	H (In.)	Approx. Spring Force* (Lbs.)	Pressure Ratings (PSI)		Allowable Motions Z, Y or Z
Size (In.)	Overall Length OAL (In.)	Live Length LL (In.)	H (In.)	Approx. Spring Force* (Lbs.)	W.P.	Max. Test	Allowable Motions Z, Y or Z
2	36	17	17	82	516	774	3"
2-1/2	39-1/2	18	18-1/2	86	387	581
3	44-1/2	20	20-1/2	93	316	474
4	51	22	23-1/2	127	232	348
5	58-3/4	24-1/2	26-1/2	214	191	286
6	66	26-1/2	29-1/2	228	165	247
8	78-3/4	29-1/2	34-1/2	312	234	350
10	92-3/4	33-1/2	40-1/2	345	230	344
12	104	35-1/2	45	399	161	241

Size (In.)	Overall Length OAL (In.)	Live Length LL (In.)	H (In.)	Approx. Spring Force* (Lbs.)	Pressure Ratings (PSI)		Allowable Motions Z, Y or Z
Size (In.)	Overall Length OAL (In.)	Live Length LL (In.)	H (In.)	Approx. Spring Force* (Lbs.)	W.P.	Max. Test	Allowable Motions Z, Y or Z
2	40	20	19	82	516	774	4"
2-1/2	43	20-1/2	20	86	387	581
3	49-1/4	23-1/2	23	93	316	474
4	56	25-1/2	26	127	232	348
5	64-1/2	28-1/2	29-1/2	214	191	286
6	71-1/2	30-1/2	32-1/2	228	165	247
8	85	34	38	312	234	350
10	100	38-1/2	44	345	230	344
12	112	41	49	399	161	241

*Total force necessary to accomodate full motion, calculated @ 150 PSIG

Download Printable PDF

Beveled Weld End Loops

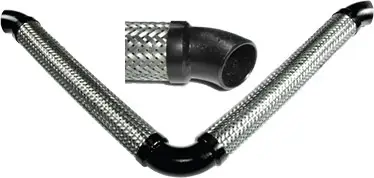

Beveled Weld End Loops are configured with carbon steel schedule 40 beveled weld ends as standard.

As in other configurations of Seismic “V” Loops, choose from either 2″, 3″ or 4″ of motion from center-line. EFP recommends placing the loops in either an inverted or horizontal installation when conveying steam. A drain port should also be specified for steam service. We can also add an eyelet at the 90 degree elbow to accommodate a support rod or cable.
