Concentric & Eccentric Reducer
Concentric Reducer & Eccentric Reducer
Pressure/vacuum:
• 165 PSI/26 in. Hg for sizes 2x1x6 thru 4x3x6
• 140 PSI/26 in. Hg for sizes 5x3x6 thru 12x10x8
• 85 PSI/15 in. Hg for sizes 14x8x8 thru 14x12x6
• 65 PSI//15 in. Hg for sizes 16x10x8 thru 18x16x8
Maximum temperature, all sizes: 230° F
| 201 Concentric Reducer | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model # | Pipe Size To Pipe Size (IN) | Min. Face-To-Face (IN)* | Movement Capabilities | Weight w/Rings | |||||
| Compression (IN) | Elongation (IN) | Lateral (Degrees) | Angular (Degrees) | ||||||
| 201RC2x1x6 | 2x1 | 6 | .5 | .25 | .5 | 18.4 | 8 | ||
| 201RC2x1.5x6 | 2 x 1.5 | 6 | .5 | .25 | .5 | 15.9 | 8 | ||
| 201RC2.5x1.5x6 | 2.5 x 1.5 | 6 | .5 | .25 | .5 | 14.1 | 10 | ||
| 201RC2.5x2x6 | 2.5 x 2 | 6 | .5 | .25 | .5 | 12.5 | 11 | ||
| 201RC3x1.5x6 | 3 x 1.5 | 6 | .5 | .25 | .5 | 12.5 | 12 | ||
| 201RC3x2x6 | 3 x 2 | 6 | .5 | .25 | .5 | 11.3 | 13 | ||
| 201RC3x2.5x6 | 3 x 2.5 | 6 | .5 | .25 | .5 | 10.3 | 15 | ||
| 201RC4x2x6 | 4 x 2 | 6 | .5 | .25 | .5 | 9.5 | 16 | ||
| 201RC4x2.5x6 | 4 x 2.5 | 6 | .5 | .25 | .5 | 8.7 | 18 | ||
| 201RC4x3x6 | 4 x 3 | 6 | .5 | .25 | .5 | 8.1 | 17 | ||
| 201RC5x3x6 | 5 x 3 | 6 | .5 | ..25 | .5 | 7.1 | 18 | ||
| 201RC5x4x6 | 5 x 4 | 6 | .5 | .25 | .5 | 6.3 | 18 | ||
| 201RC6x2x8 | 6 x 2 | 8 | .5 | .25 | .5 | 7.1 | 19 | ||
| 201RC6x2.5x6 | 6 x 2.5 | 6 | .5 | .25 | .5 | 6.7 | 19 | ||
*For larger sizes, contact us
201RC & 201EC

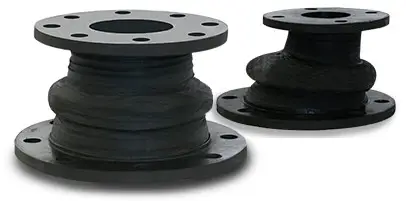

The Concentric Reducer (tapered expansion joint) connects unequal size pipes that have a common centerline. Taking the place of a metallic reducer these joints also provide sound and vibration isolation and compensate for pipeline expansion.
It is constructed with a synthetic fabric that reinforces the body and employs metal retaining rings. Flanges are drilled to standard ANSI dimensions.
The Eccentric Reducer is available upon request, please contact us.
Available in many different rubber compounds and combinations of rubber compounds.
