CSA Metal Hose
| CSA Metal Hose | |||||||
|---|---|---|---|---|---|---|---|
| Pipe Size NPT | OAL | Part Numbers | Burst Pressure @ 70°F (PSIG) | Min. Bend Radius Static | Min. Bend Radius Dynamic | Working Pressure (PSIG) | |
| 1/2 | CSA-SB26A0050-XXXX | 4301 | 1-1/2" | 6" | 150 @ 70° F | ||
| 3/4 | CSA-SB26A0075-XXXX | 3168 | 2-1/4" | 8" | 150 @ 70° F | ||
| 1 | CSA-SB26A0100-XXXX | 2285 | 2-3/4" | 9" | 150 @ 70° F | ||
| 1-1/4 | CSA-SB26A0125-XXXX | 2125 | 3-1/2" | 10-1/2" | 150 @ 70° F | ||
| 1-1/2 | CSA-SB26A0150-XXXX | 1887 | 4" | 12" | 150 @ 70° F | ||
| 2 | CSA-SB26A0200-XXXX | 2064 | 5" | 15" | 150 @ 70° F | ||
| 2-1/2 | CSA-SB26A0250-XXXX | 1548 | 8" | 20" | 150 @ 70° F | ||
| 3 | CSA-SB26A0300-XXXX | 1264 | 9" | 22" | 150 @ 70° F | ||
| 4 | CSA-SB26A0400-XXXX | 927 | 13" | 27" | 150 @ 70° F | ||
| CSA Metal Hose | |||||||
|---|---|---|---|---|---|---|---|
| Pipe Size NPT | OAL | Part Numbers | Burst Pressure @ 70°F (PSIG) | Min. Bend Radius Static | Min. Bend Radius Dynamic | Working Pressure (PSIG) | |
| 1/2 | CSA-SB30A0050-XXXX | 4301 | 1-1/2" | 6" | 150 @ 70° F | ||
| 3/4 | CSA-SB30A0075-XXXX | 3168 | 2-1/4" | 8" | 150 @ 70° F | ||
| 1 | CSA-SB30A0100-XXXX | 2285 | 2-3/4" | 9" | 150 @ 70° F | ||
| 1-1/4 | CSA-SB30A0125-XXXX | 2125 | 3-1/2" | 10-1/2" | 150 @ 70° F | ||
| 1-1/2 | CSA-SB30A0150-XXXX | 1887 | 4" | 12" | 150 @ 70° F | ||
| 2 | CSA-SB30A0200-XXXX | 2064 | 5" | 15" | 150 @ 70° F | ||
| 2-1/2 | CSA-SB30A0250-XXXX | 1548 | 8" | 20" | 150 @ 70° F | ||
| 3 | CSA-SB30A0300-XXXX | 1264 | 9" | 22" | 150 @ 70° F | ||
| 4 | CSA-SB30A0400-XXXX | 927 | 13" | 27" | 150 @ 70° F | ||

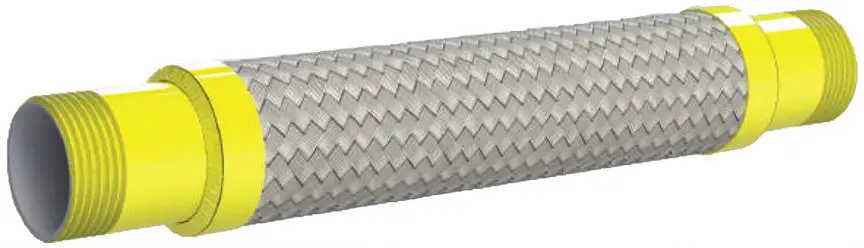

CSA Metal Hose
EFP CSA rated flex connectors are designed for use as a connector in medium pressure natural gas applications in the United States and Canada. They are built to length and come with either carbon steel or stainless steel Sch40 male NPT ends or beveled weld ends.
Every assembly is pressure tested and is rated to 150 psig.
Safety factors range from 6:1 on the 4” diameter assemblies to greater than 28:1 on ó” diameter. All finished assemblies come with a metal tag permanently attached with manufacturer, manufacture date, maximum working pressure, maximum lateral offset, and CSA logo.
