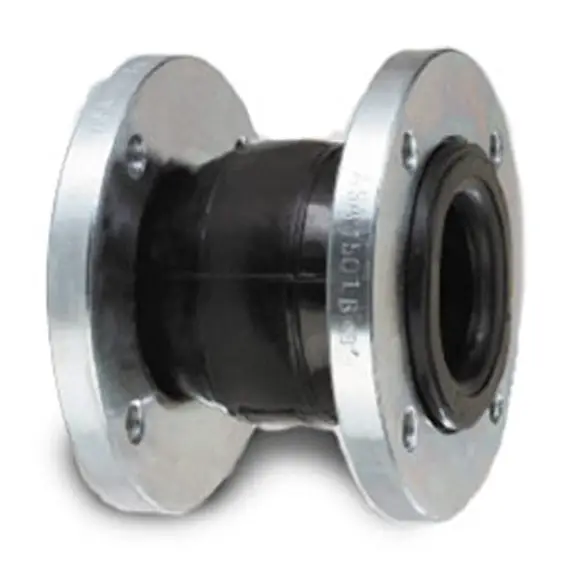

Single Sphere 301 Series
Available Materials
| EFP Code | Cover Elastomer | Tube Elastomer | Max Operating Temp. |
|---|---|---|---|
| EE | EPDM | EPDM | 250°F |
| NN | Neoprene | Neoprene | 225°F |
| NP | Neoprene | Nitrile | 212°F |
| BB | Chlorobutyl | Chlorobutyl | 250°F |
All Products are reinforced with Nylon Tire Cord.
| Dimensions | Flange Drilling | Motion Ratings | Operating Conditions | Approx. Weights | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Pipe Size | F-Length of Joint | G-Flange Thickness | A-Flange O.D. | Flange Bolt Hole Circle | Number & Hole Size | Axial Compression | Axial Extension | Lateral Deflection | Angular Movements | Pressure Rating (PSIG @ 170°F) | Vacuum Rating (In/Hg) | Expansion Joint (lbs) | Control 2-Rod Set | Total Approx. weight (lbs) |
| 1" | 6" | 0.55" | 4.25" | 3.13" | 4 - 0.62" | 0.5" | 0.375" | 0.5" | 37° | 225 | 26 | 3.8 | 3.3 | 7.1 |
| 1.25" | 6" | 0.55" | 4.63" | 3.5" | 4 - 0.62" | 0.5" | 0.375" | 0.5" | 31° | 225 | 26 | 5 | 3.3 | 8.3 |
| 1.5" | 6" | 0.55" | 5 | 3.88" | 4 - 0.62" | 0.5" | 0.375" | 0.5" | 27° | 225 | 26 | 6.1 | 4.6 | 10.7 |
| 2" | 6" | 0.63" | 6" | 4.75" | 4 - 0.75" | 0.5" | 0.375" | 0.5" | 20° | 225 | 26 | 12.3 | 7.6 | 19.9 |
| 2.5" | 6" | 0.71" | 7" | 5.5" | 4 - 0.75" | 0.5" | 0.375" | 0.5" | 17° | 225 | 26 | 12.3 | 7.6 | 19.9 |
| 3" | 6" | 0.71" | 7.5" | 6" | 4 - 0.75" | 0.5" | 0.375" | 0.5" | 14° | 225 | 26 | 14 | 8.3 | 22.3 |
| 3.5" | 6" | 0.71" | 8.5" | 7" | 8 - 0.75" | 0.5" | 0.375" | 0.5" | 14° | 225 | 26 | 17.6 | 7.4 | 25 |
| 4" | 6" | 0.71" | 9" | 7.5" | 8 - 0.75" | 0.75" | 0.5" | 0.5" | 14° | 225 | 26 | 18.3 | 7.4 | 25.7 |
| 5" | 6" | 0.79" | 10 | 8.5" | 8 - 0.88" | 0.75" | 0.5" | 0.5" | 11° | 225 | 26 | 22.8 | 8.3 | 31.1 |
| 6" | 6" | 0.87" | 11" | 9.5" | 8 - 0.88" | 0.75" | 0.5" | 0.5" | 9° | 225 | 26 | 26.8 | 10.4 | 37.2 |
| 8" | 6" | 0.87" | 13.5" | 11.75" | 8 - 0.88" | 0.75" | 0.5" | 0.5" | 7° | 225 | 26 | 40.6 | 13.4 | 54 |
| 10" | 8" | 0.95" | 16" | 14.25" | 12 - 1" | 1" | 0.625" | 0.75" | 7° | 225 | 26 | 56.6 | 21.3 | 77.9 |
| 12" | 8" | 0.95" | 19" | 17" | 12 - 1" | 1" | 0.625" | 0.625" | 6° | 225 | 26 | 83 | 27 | 110 |
| 14" | 8" | 1.07" | 21" | 18.75" | 12 - 1.13" | 1" | 0.625" | 0.75" | 6° | 150 | 26 | 115 | 28 | 143 |
| 16" | 8" | 1.10" | 23.5" | 21.25" | 16 -1.13" | 1" | 0.625" | 0.75" | 4° | 125 | 26 | 165 | 26.8 | 191.8 |
| 18" | 8" | 1.18" | 25" | 22.75" | 16 -1.25" | 1" | 0.625" | 0.75" | 4° | 125 | 26 | 168 | 31.4 | 199.4 |
| 20" | 8" | 1.18" | 27.5" | 25" | 20 - 1.25" | 1" | 0.625" | 0.75" | 3° | 125 | 26 | 170 | 32.4 | 202.4 |
| 24" | 10" | 1.18" | 32.06" | 29.5" | 20 - 1.36" | 1" | 0.625" | 0.75" | 3" | 110 | 26 | 255 | 45.5 | 300.5 |
| 30" | 10" | 1.26" | 38.75" | 36" | 28 - 1.36" | 1" | 0.625" | 0.75" | 2° | 110 | 26 | 295 | 57 | 352 |
| Control Units/Unanchored | ||
|---|---|---|
| Control Units must be installed when pressures (test • design • operating) exceed rating below: | ||
| Pipe Size | Series 301 P.S.I.G. | Series 302 P.S.I.G. |
| 1" thru 4" | 180 | 135 |
| 5" thru 10" | 135 | 135 |
| 12" thru 14" | 90 | 90 |
| 16" thru 24" | 45 | 45 |
| 30" | 35 | 35 |
| Maximum Surge or Test Pressure of the System | |||||
|---|---|---|---|---|---|
| Nominal Pipe Size Expansion Joint I.D. Inch/(mm) | Number of Control Rods Recommended | ||||
| 2 | 4 | 6 | 8 | ||
| 1 | (25) | 949 | • | • | • |
| 1.25 | (32) | 830 | • | • | • |
| 1.5 | (40) | 510 | • | • | • |
| 2 | (50) | 661 | • | • | • |
| 2.5 | (65) | 529 | • | • | • |
| 3 | (75) | 441 | • | • | • |
| 4 | (100) | 311 | 622 | • | • |
| 5 | (125) | 235 | 470 | • | • |
| 6 | (150) | 186 | 371 | • | • |
| 8 | (200) | 163 | 326 | • | • |
| 10 | (250) | 163 | 325 | 488 | • |
| 12 | (300) | 160 | 320 | 481 | • |
| 14 | (350) | 112 | 223 | 335 | • |
| 16 | (400) | 113 | 227 | 340 | 453 |
| 18 | (450) | 94 | 187 | 281 | 375 |
| 20 | (500) | 79 | 158 | 236 | 315 |
| 24 | (600) | 74 | 147 | 221 | 294 |
| 30 | (750) | 70 | 141 | 211 | 281 |
301 Series
The Single Sphere joint/flexible connector provides up to 225 PSI and temperatures up to 230° F*! It protects your pumps and piping system from changes in temperature and pressure, while reducing vibration.
An extremely economical and resilient expansion joint/connector, the Single Sphere also helps control pulsation shocks and noise transmission. Its spherical shape reduces the force exerted on pipe lines and equipment.
It has a self-cleaning arch and solid plate flanges that are tapped or drilled to mate with 150# or 300# companion flanges. Flanges can be rotated for easy installation and grip the sealing area for an extremely tight connection.
Constructed of neoprene and nylon, it has bias-ply tire cord for strength, and is molded into a dense, uniform body. Other materials are also available. Refer to the charts below.
EPDM body with 150# drilled flanges provides up to 225 PSI and temperatures up to 230° F*.
Neoprene body with 150# drilled flanges provides up to 225 PSI and temperatures up to 230° F*.
Butyl body with 150# drilled flanges provides up to 225 PSI and temperatures up to 230° F*.
Nitrile body with 150# drilled flanges provides up to 225 PSI and temperatures up to 230° F*.
